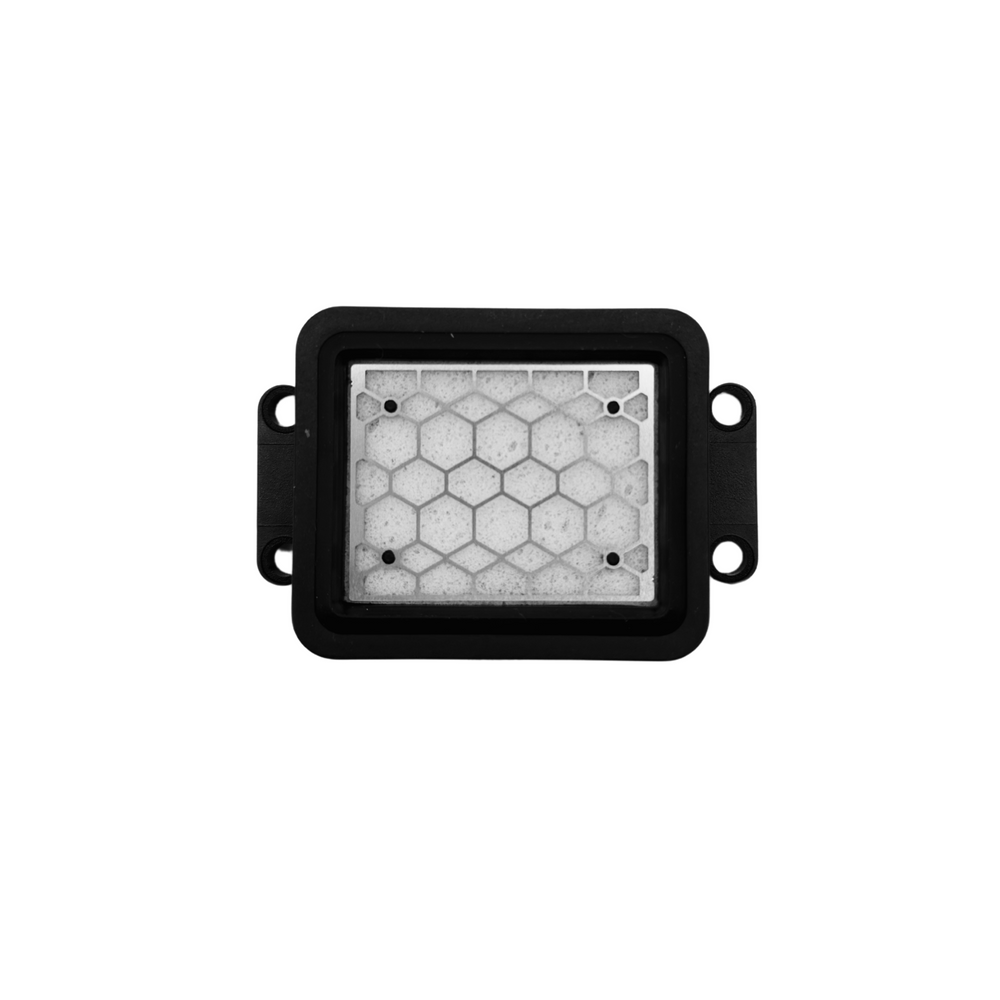

Epson I3200 Printhead Capping Station - Hexagon

Printhead Hexagon Design: The Gold Standard for Maintenance

The Epson i3200 Printhead Capping Station (Hexagon Model) is an indispensable component for any high-performance DTF or UV printer setup. While the printhead is the star of the show, the capping station is the silent guardian that ensures it functions correctly. The "Hexagon" design refers to the specialized internal structure. This geometry is engineered to optimize vacuum pressure and maximize the surface area of the seal. For owners of the Epson i3200-A1, E1, or U1, this capping station provides the airtight security needed to prevent nozzle dry-outs and costly downtime.

In the demanding environment of a professional print shop, ink evaporation is a constant threat. The Hexagon capping station solves this by creating a perfect micro-environment for the nozzle plate. Whether you are running a 24/7 production line or a boutique custom shop, this part is essential for consistent quality.

Maximize your production efficiency by pairing your new ink system with the right media. High-quality films ensure better ink adhesion and sharper details for every project. Visit our UV DTF Film collection to find the perfect match for your professional printing needs.

Ink quality is just as important as tank design for high-quality prints. Our specially formulated inks minimize clogging and maximize color accuracy. Explore our UV DTF Inks collection now for perfect results on both hard and flexible surfaces.

The Critical Importance of a Perfect Seal

The capping station is the only thing standing between your printhead and the drying effects of the atmosphere. The Epson i3200 Hexagon Capping Station performs two primary, high-stakes functions.

1. Advanced Vacuum Suction Efficiency

During cleaning cycles, the printer's pump relies on the capping station to create a vacuum. The Hexagon internal structure is designed to distribute this suction force evenly across the entire nozzle plate. This prevents "weak spots" during a cleaning cycle. It ensures that every single nozzle—from the center to the edges—is thoroughly flushed with fresh ink. This is particularly important for the i3200, which has a very high nozzle density.

2. Moisture Preservation for Pigment Inks

DTF inks are pigment-based and contain binders that can harden quickly. When the printhead "parks" on the Hexagon cap, it locks in moisture. This prevents the ink from "skinning over" inside the nozzles. A secure seal means you can leave your printer idle overnight and start printing immediately the next morning. This saves a significant amount of ink that would otherwise be wasted on heavy recovery cleanings.

Key Features of the Hexagon Design

The Hexagon Capping Station is a significant upgrade over standard, generic cap tops. Every detail is focused on durability and precision.

High-Grade Chemical-Resistant Polymer

The sealing rim is made from a specialized, soft-touch polymer. This material is designed to be chemically compatible with water-based DTF inks and aggressive UV inks. It resists "swelling," a common problem where the rubber expands and loses its shape. The Hexagon cap maintains its structural integrity even after months of exposure to cleaning solvents.

Reinforced Internal Mesh Support

Inside the cap, a fine-density mesh prevents the rubber from collapsing under high vacuum pressure. This mesh also acts as a stabilizer for the ink flow. It breaks up bubbles and ensures that waste ink is pulled into the drainage tubes without splashing back onto the printhead. This keeps the underside of your Epson i3200-A1 Printhead clean and free of debris.

Micro-Precision Alignment

The Hexagon model is molded with extremely tight tolerances. This ensures it fits perfectly into the maintenance station's lifting mechanism. The cap is designed to "float" slightly, allowing it to self-align with the printhead as it moves upward. This "soft-docking" feature protects the delicate nozzle plate from physical impact and wear.

Professional Maintenance for the Hexagon Cap

To ensure your Epson i3200 Printhead stays in peak condition, you must maintain the capping station that protects it.

• Daily Rim Cleaning: Use a lint-free swab dipped in DTF Cleaning Solution to wipe the outer rubber rim every morning. This removes any dust or hair that could break the airtight seal.

• Drainage Check: Once a week, drop a few milliliters of cleaning fluid into the cap. If the fluid drains away slowly, it indicates a partial clog in the waste lines. Clean the tubes immediately to avoid back-pressure.

• Wiper Coordination: The capping station works with the wiper blade. If the wiper is dirty, it will drag dried ink onto the capping seal. Always clean your wiper and capping station as a single maintenance unit.

• Scheduled Replacement: Like tires on a car, the rubber on a capping station wears out. For a busy shop, we recommend replacing the Hexagon cap every 4 to 6 months. This is a small price to pay compared to the cost of a new printhead.

Signs Your Capping Station Needs Replacement

A failing capping station can cause "ghost" issues that look like printhead failure. Watch for these symptoms:

Missing Nozzles After Cleaning: If a head clean doesn't fix missing nozzles, the cap might be leaking air, preventing a full vacuum.

Ink Flooding on the Nozzle Plate: If the cap cannot drain fast enough, ink will pool and "flood" the head, causing cross-contamination of colors.

Visible Gaps or Warping: If the rubber rim looks wavy or has visible cracks, it can no longer protect the head from drying out.

Pump "Sucking Air": If you see air bubbles moving through the waste tubes during a clean, the seal is broken.

Conclusion: Small Part, Massive Protection

The Epson i3200 Printhead Capping Station (Hexagon Model) is one of the most cost-effective ways to ensure your printer's reliability. By providing a superior seal and efficient drainage, it protects your most expensive hardware from the environment. In the world of DTF printing, a clean head is a profitable head.
